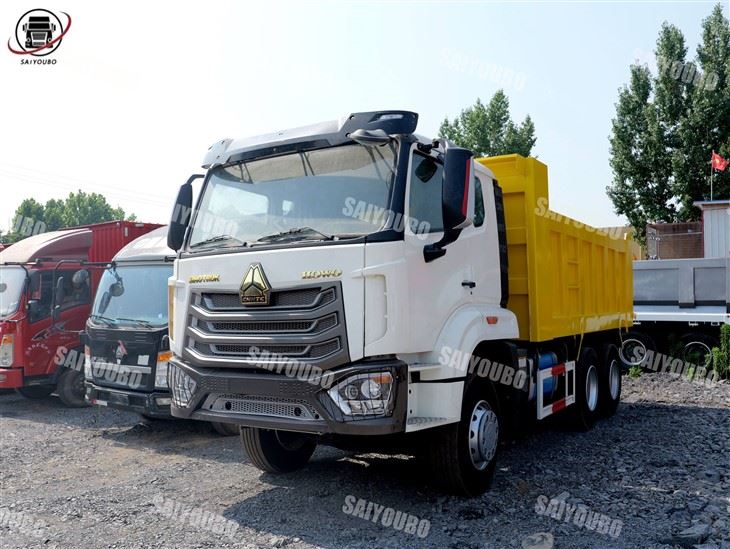

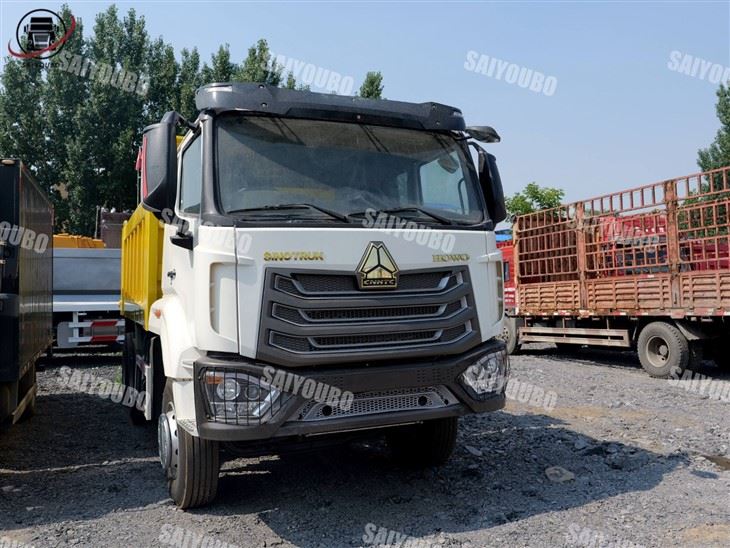

Hohan 6x4 Dump Truck
Built tough for heavy-duty hauling, the Hohan 6x4 Dump Truck delivers reliable performance for mining, construction, and earthmoving projects around the world. Engineered for high productivity and low operating cost, it works reliably in harsh conditions while keeping downtime to a minimum.
Product Introduction
The Hohan Dump Truck is a 6×4 heavy-duty transport vehicle designed for earthmoving, mining, construction, and infrastructure projects. It is suitable for hauling sand, gravel, ore, and bulk materials under demanding road and off-road working conditions.
Technical parameters
This is an Hohan 6x4 Dump Truck chassis (model NXG3250D5WCX), manufactured by Sinotruk Automobile Manufacturing Co., Ltd. in October 2021. Key parameters are as follows:
🔹 Core Parameters on Nameplate
| Item | Details |
|---|---|
| Brand | Sinotruk |
| Country of manufacture | Shandong,China |
| Model | NXG3250D5WCX |
| Engine model | Weichai WP10.375E53 |
| Maximum net power/speed | 271 kW / 1900 r/min (approx. 375 hp) |
| Maximum permissible gross vehicle weight | 25000 kg |
| Curb weight | 10100 kg |
| Vehicle Identification Number (VIN) | LC1HMMAF4M0007328 |
| Date of manufacture | October 2021 |
🔹 Detailed Engine Parameters (WP10.375E53)
| Item | Details |
|---|---|
| Type | Inline 6-cylinder, 4-stroke, turbocharged and intercooled |
| Displacement | 9.726 L |
| Emission Standard | Erou 2/3 |
| Maximum Horsepower | 375 hp |
| Maximum Torque | 1650 N·m (1200–1600 r/min) |
| Fuel | Diesel |
🔹 Vehicle and Chassis Parameters
| Item | Details |
|---|---|
| Drive Type | 6×4 (8-wheel rear) |
| Wheelbase | 3600+1400 mm or 3800+1400 mm (depending on the official announcement) |
| Overall Dimensions | Approx. 7825–8420 × 2500 × 3200–3520 mm |
| Cargo Box Dimensions (Common Configuration) | 5400–5800 × 2300 × 1130–1500 mm |
| Tire Specifications | 12.00R20 or 12R22.5 |
| Maximum Speed | 80 km/h |
| Anti-lock Braking System (ABS) | Yes |
Key Advantages
375 hp Weichai WP10 engine delivers strong hauling power and stable torque output, improving performance on steep slopes and heavy-load operations.
01
6×4 drive configuration with reinforced chassis provides reliable traction and durability for construction sites, mining roads, and rough terrain conditions.
02
1650 N·m maximum torque at low engine speed enhances fuel efficiency and maintains stable performance during heavy-duty transport tasks.
03
ABS braking system improves braking stability and driving safety, especially on wet, uneven, or heavily loaded roads.
04
Multiple wheelbase and tire configurations allow flexible adaptation to different payload requirements and regional transport regulations.
05
Pricing & Cooperation
- Factory-direct pricing is available based on truck model, configuration, and order quantity.
- Flexible payment terms include T/T, L/C, and D/P to support different purchasing requirements.
- MOQ: 1 unit, suitable for both trial orders and long-term cooperation.
- Bulk order discounts are available for large-volume purchases.
- Export documents and certificates such as CE, ISO, and other required certifications can be provided according to destination market requirements.
Product detail images
Packaging & Shipping
Anti-rust treatment and secure fastening are applied before shipment to protect the truck during overseas transport.
RO-RO shipping or container shipping can be arranged according to destination and customer requirements.
Complete export documentation is provided to support efficient customs clearance and import procedures.
FAQ
Q: Is the minimum order 1 unit?
A: Yes, we accept orders of 1 unit for trial and small projects.
Q: Does it meet international emission standards?
A: Yes, available in Euro III, Euro IV, and other regional certifications.
Q: Do you provide certifications?
A: We supply CE, ISO, EPA, and other required documents.
Q: What payment terms do you accept?
A: T/T, L/C, D/P, and other commonly used trade terms.
Q: Is financing available for bulk orders?
A: We support flexible payment plans for qualified bulk buyers.
