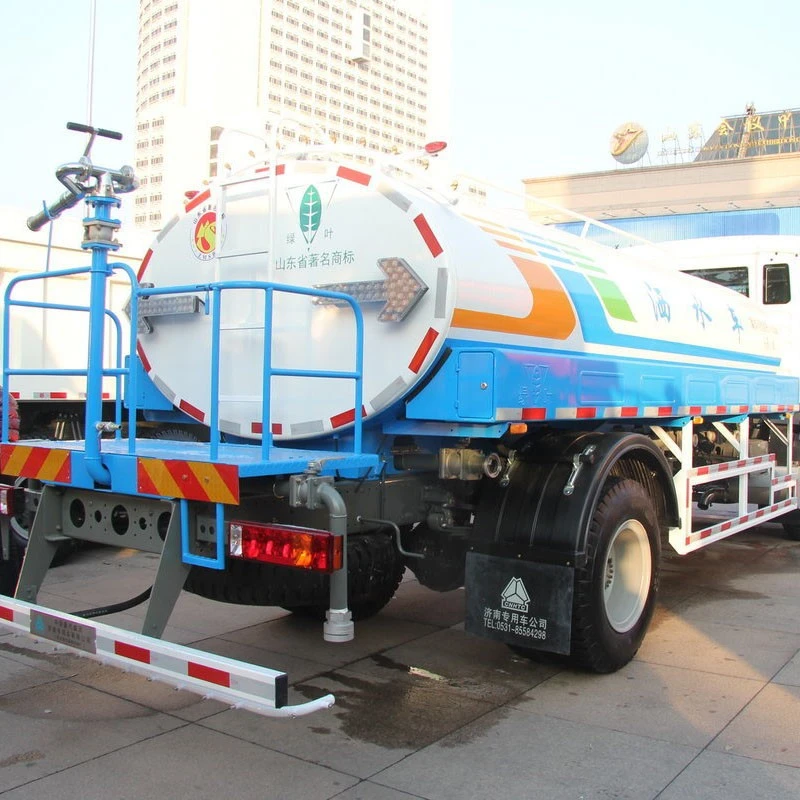

Howo 4x2 Water Tank
The HOWO 4X2 Water Tank Truck is a reliable and versatile vehicle designed for efficient water transportation, irrigation, and dust suppression in construction, mining, and municipal applications. Powered by a 240-horsepower Sinotruk WD615.47 engine, this truck delivers excellent fuel efficiency while meeting Euro V emission standards.
Product Introduction
The HOWO 4x2 Water Tank Truck is a SINOTRUK HOWO chassis-based municipal vehicle designed for water distribution operations in road cleaning, dust control, irrigation, and general utility water transport across construction, mining, and municipal maintenance environments.
Technical Specifications
|
Parameter Name |
Parameter Configuration |
|
Drive Type |
4×2 (Dual Rear Wheel Drive) |
|
Volume Range |
5,000L to 12,000L (commonly 8,000L or 10,000L) |
|
Chassis Brand |
Sinotruk HOWO |
|
Engine |
Common Power: 140–190 HP (e.g. Yuchai YC4E140-33, Weichai, etc.) |
|
Gearbox |
Manual 6 Forward Gears + 1 Reverse Gear |
|
Tires |
8.25R20 or 10.00R20, usually 6+1 (including spare tire) |
|
Tank Material |
Carbon Steel or Stainless Steel (Optional) |
|
Gross Vehicle Weight (GVW) |
10,000–16,000 kg |
|
Wheelbase |
4,200–5,000 mm |
|
Maximum Speed |
Approx. 95 km/h |
|
Emission Standard |
Euro 2 or Euro 4 (depending on the model) |
Key Features
· The vehicle is powered by a SINOTRUK WD615.47 engine with 240 horsepower and Euro 2 or 4 emission compliance.
· The transmission system uses a 6-speed manual gearbox.
· The vehicle adopts a 4x2 rear-wheel drive configuration.
· The chassis features front and rear axle load distribution for heavy-duty operation.
· The vehicle is equipped with a welded steel water tank mounted on the chassis frame.
· The tank system is integrated with a water pumping and distribution system.
· The spraying system includes front flushing, rear sprinkling, and side spraying layouts with adjustable spray direction.
· The configuration supports both left-hand drive and right-hand drive market requirements.
Delivery & Packaging
- Standard production time: 15–25 days (depending on order)
- Anti-corrosion wax protection before shipment
- Ro-Ro or container shipping available
- Spare parts support for long-term operation
Compliance, Export Experience & After-Sales Support
- The vehicle complies with the Euro 2 or 4 emission standard and holds ISO and CE certifications for international markets.
- The product is exported to more than 20 countries across Southeast Asia and Africa.
- The vehicle has operational records in Nigeria with long-term field use.
- After-sales support includes English and Spanish operation manuals and technical documentation.
- Overseas service support is available in key export regions.
- 24-hour remote technical support is provided.
- Original spare parts supply is available for maintenance and replacement.
FAQ
Q: What applications is the HOWO 4x2 Water Tank Truck used for?
A: It is used for road cleaning, dust suppression, irrigation, and municipal water transport operations.
Q: What is the water tank capacity range?
A: The standard configuration supports a 5,000L tank, with optional configurations available depending on project requirements.
Q: Can the truck be adapted for different countries?
Yes. It supports left-hand drive, right-hand drive, and different emission standard configurations.
Q: What is the delivery lead time?
A: The production and delivery cycle is typically 15–25 days depending on order volume and configuration.
Q: What after-sales support is available for overseas buyers?
A: Support includes technical documentation, remote assistance, spare parts supply, and regional service coverage in selected markets.
