How to ensure the proper alignment of the drum in a concrete mixer truck?
Hey there! As a supplier of concrete mixer trucks, I've seen firsthand how crucial it is to ensure the proper alignment of the drum in these vehicles. A misaligned drum can lead to a whole bunch of problems, from uneven mixing of concrete to premature wear and tear on the truck's components. So, in this blog post, I'm gonna share some tips on how to make sure your drum stays in tip - top alignment.
Why is Drum Alignment So Important?
First off, let's talk about why drum alignment matters. When the drum of a concrete mixer truck is properly aligned, it rotates smoothly and evenly. This ensures that the concrete inside gets thoroughly mixed, resulting in a high - quality end product. On the other hand, if the drum is misaligned, the concrete might not mix correctly. You could end up with pockets of unmixed material, which can weaken the structure of the concrete once it sets.
Moreover, a misaligned drum puts extra stress on the truck's bearings, gears, and other mechanical parts. This can lead to increased wear and tear, which means more frequent maintenance and potentially costly repairs down the road. In some cases, it can even cause the drum to seize up, leaving you with a non - functional mixer truck.
Pre - Delivery Inspection

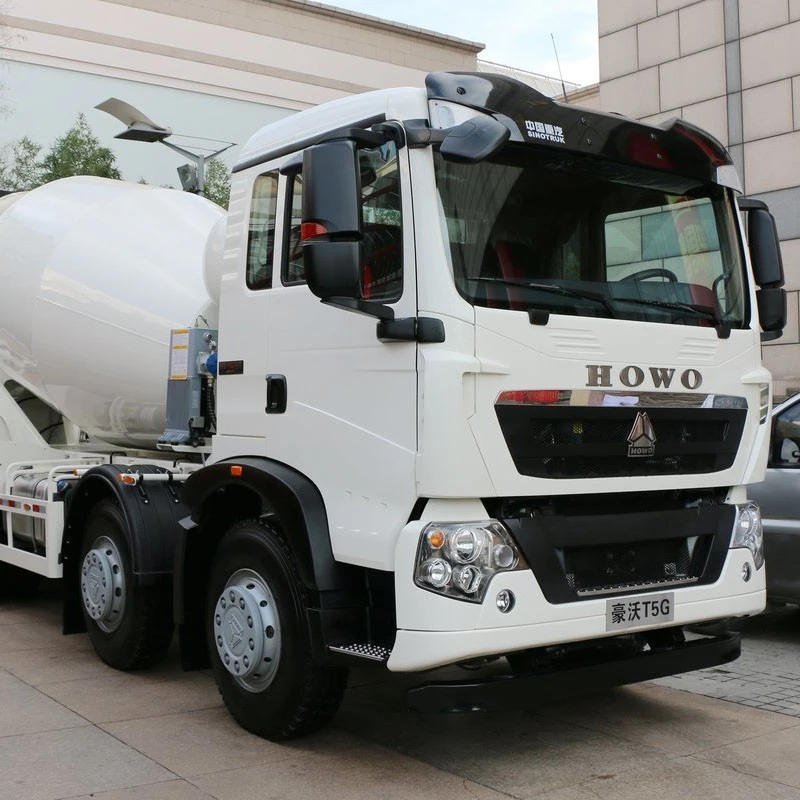

As a supplier, we always conduct a thorough pre - delivery inspection of our Sitrak 8x4 Mixer Truck, Howo 8x4 Mixer Truck, and Shacman 8x4 Mixer Truck. During this inspection, we check the drum alignment using specialized tools. We measure the drum's position relative to the truck's frame and make sure it's centered and level.
We also look for any signs of damage or misalignment in the drum's mounting brackets. These brackets are what hold the drum in place, so if they're bent or damaged, it can throw off the alignment. If we find any issues during the pre - delivery inspection, we fix them right away before the truck leaves our facility.
Regular Maintenance Checks
Once the truck is in your hands, it's important to perform regular maintenance checks to ensure the drum stays properly aligned. You should check the drum alignment at least once a month, or more frequently if you use the truck heavily.
To check the alignment, you'll need a few basic tools, like a straightedge and a set of feeler gauges. First, park the truck on a level surface and make sure the drum is empty. Then, use the straightedge to check the straightness of the drum's outer edge. Place the straightedge along the length of the drum and look for any gaps between the straightedge and the drum. If there are gaps, it could be a sign of misalignment.
Next, use the feeler gauges to measure the clearance between the drum and its mounting brackets. The clearance should be consistent all the way around. If you notice any significant differences in the clearance, it means the drum might be misaligned.
Adjusting the Drum Alignment
If you find that the drum is misaligned during your maintenance check, don't panic. In most cases, you can adjust the alignment yourself. However, if you're not comfortable doing it, it's best to take the truck to a professional mechanic.
The first step in adjusting the drum alignment is to loosen the bolts on the drum's mounting brackets. This will allow you to move the drum into the correct position. Use a jack or a hoist to lift the drum slightly if necessary. Then, use a pry bar or a similar tool to nudge the drum into place.
Once you think the drum is in the right position, tighten the bolts on the mounting brackets. Make sure to tighten them evenly to avoid creating new alignment issues. After tightening the bolts, re - check the alignment using your straightedge and feeler gauges. Keep adjusting and re - checking until the alignment is correct.
Operator Training
Another important aspect of ensuring proper drum alignment is operator training. Your operators should be trained on how to use the mixer truck correctly and how to recognize the signs of a misaligned drum.
For example, they should know that if the drum makes unusual noises or vibrations while it's rotating, it could be a sign of misalignment. They should also be trained to perform basic maintenance checks, like checking the drum alignment, as part of their daily pre - trip inspections.
By providing your operators with proper training, you can catch alignment issues early and prevent them from turning into major problems.
Environmental Factors
Environmental factors can also affect the drum alignment. For example, if the truck is driven on rough or uneven roads, it can cause the drum to shift out of alignment. Similarly, if the truck is exposed to extreme temperatures or weather conditions, it can cause the metal components to expand or contract, which can also affect the alignment.
To minimize the impact of environmental factors, try to drive the truck on smooth roads as much as possible. If you have to drive on rough roads, go slowly and avoid sudden stops and starts. You should also park the truck in a sheltered area whenever possible to protect it from the elements.
Conclusion
Ensuring the proper alignment of the drum in a concrete mixer truck is essential for the quality of the concrete and the longevity of the truck. By following the tips I've shared in this blog post, you can keep your drum properly aligned and avoid costly repairs and downtime.
If you're in the market for a new concrete mixer truck, we've got a great selection of Sitrak 8x4 Mixer Truck, Howo 8x4 Mixer Truck, and Shacman 8x4 Mixer Truck. Our trucks are built to last and come with a comprehensive warranty. If you're interested in learning more about our products or have any questions about drum alignment, feel free to reach out to us. We're always happy to help you make the right choice for your business.
