What is the function of the water tank on a concrete mixer truck?
What is the function of the water tank on a concrete mixer truck?
As a seasoned supplier of concrete mixer trucks, I've often been asked about the various components of these essential vehicles. One question that frequently comes up is about the function of the water tank on a concrete mixer truck. In this blog post, I'll delve into the crucial roles that the water tank plays in the operation of a concrete mixer truck.
1. Mixing the Concrete
The primary function of the water tank is to provide the necessary water for mixing concrete. Concrete is a composite material composed of cement, aggregates (such as sand and gravel), and water. The right amount of water is essential for the chemical reaction between the cement and water, known as hydration, which causes the concrete to harden.
When the aggregates and cement are loaded into the drum of the mixer truck, water from the tank is added in a controlled manner. The water helps to bind the cement and aggregates together, forming a homogeneous mixture. The consistency of the concrete, known as its slump, is determined by the amount of water added. A proper slump is crucial for the workability and strength of the concrete. Too little water can result in a dry, unworkable mixture, while too much water can weaken the concrete and cause it to shrink and crack as it dries.
Our Sitrak 8x4 Mixer Truck is equipped with a high - capacity water tank that allows for precise control of the water addition during the mixing process. This ensures that the concrete produced is of the highest quality, with the right consistency and strength.
2. Keeping the Drum Clean
Another important function of the water tank is to keep the drum of the mixer truck clean. Concrete is a sticky substance, and if it is allowed to dry and harden inside the drum, it can cause significant problems. It can reduce the capacity of the drum, make it difficult to unload the concrete, and even damage the mixer mechanism.
After each load of concrete is delivered, water from the tank is used to wash the inside of the drum. The water is sprayed onto the walls of the drum, loosening any remaining concrete and flushing it out. This regular cleaning helps to maintain the efficiency of the mixer truck and extends its lifespan.

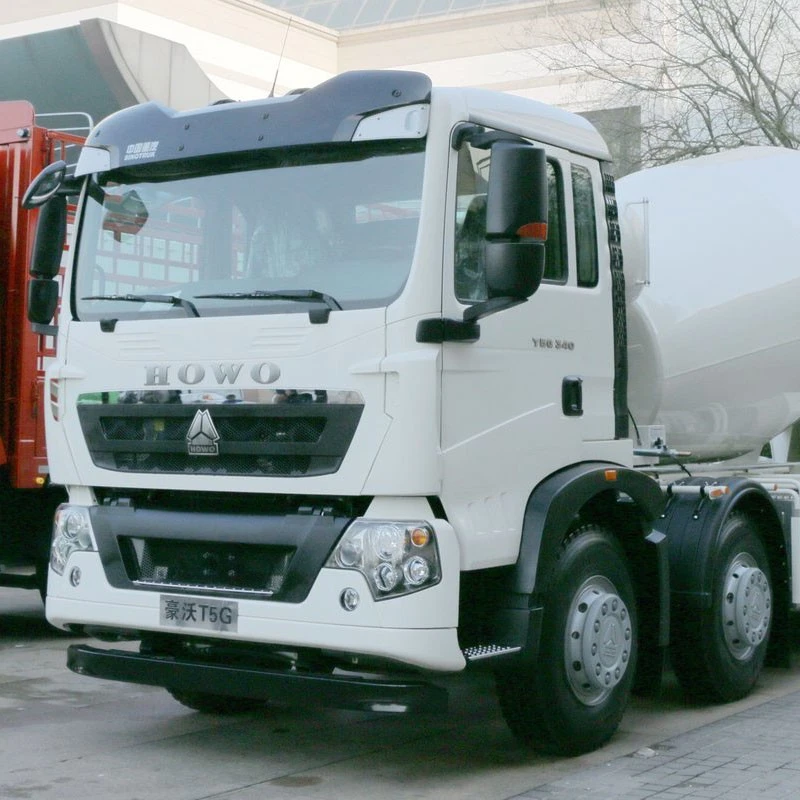

The Howo 8x4 Mixer Truck features an advanced water spraying system connected to the water tank. This system ensures thorough cleaning of the drum, even in hard - to - reach areas, preventing the build - up of concrete residues.
3. Adjusting the Concrete Consistency on Site
Sometimes, the conditions at the construction site may require adjustments to the concrete consistency. For example, if the concrete has been transported over a long distance or in hot weather, it may start to dry out and become less workable. In such cases, water from the tank can be added to the drum to increase the slump and make the concrete easier to place and finish.
This on - site adjustment capability is a significant advantage of having a water tank on the mixer truck. It allows the construction crew to adapt to changing conditions and ensure that the concrete meets the required specifications. Our Howo 6x4 Mixer Truck is designed with a user - friendly water control system, enabling operators to make quick and accurate adjustments to the concrete consistency on site.
4. Dust Suppression
During the loading and unloading of aggregates and the mixing process, dust can be generated. This dust can be a health hazard for the workers on the site and can also cause environmental pollution. The water tank on the concrete mixer truck can be used to suppress dust.
Water is sprayed around the loading area and the mixer drum to wet the aggregates and prevent dust from becoming airborne. This not only improves the working conditions for the workers but also helps to comply with environmental regulations.
5. Emergency Cooling
In some cases, the continuous operation of the mixer truck can cause the drum and other components to overheat. The water from the tank can be used for emergency cooling. By spraying water on the overheated parts, the temperature can be reduced, preventing damage to the equipment and ensuring the safe and efficient operation of the mixer truck.
Considerations for Water Tank Design
When designing the water tank for a concrete mixer truck, several factors need to be considered. The capacity of the water tank should be sufficient to meet the various needs of the mixer truck, including mixing, cleaning, and on - site adjustments. However, it also needs to be balanced with the overall weight and space limitations of the truck.
The water tank should be made of a durable material that can withstand the harsh conditions of the construction environment. It should also be designed to prevent leakage and contamination of the water. Additionally, the water delivery system, including pipes, valves, and nozzles, should be reliable and easy to maintain.
Conclusion
In conclusion, the water tank on a concrete mixer truck is a vital component that serves multiple functions. It is essential for producing high - quality concrete, maintaining the cleanliness and efficiency of the mixer truck, adapting to on - site conditions, suppressing dust, and providing emergency cooling.
If you're in the market for a reliable concrete mixer truck, our range of trucks, including the Sitrak 8x4 Mixer Truck, Howo 8x4 Mixer Truck, and Howo 6x4 Mixer Truck, are designed to meet your specific needs. We are committed to providing high - quality products and excellent customer service. If you have any questions or are interested in purchasing a concrete mixer truck, please feel free to contact us for a detailed discussion and a customized solution.
References
- "Concrete Technology" by P.K. Mehta and P.J.M. Monteiro.
- "Construction Equipment Handbook" by Edward W. Hicks.
