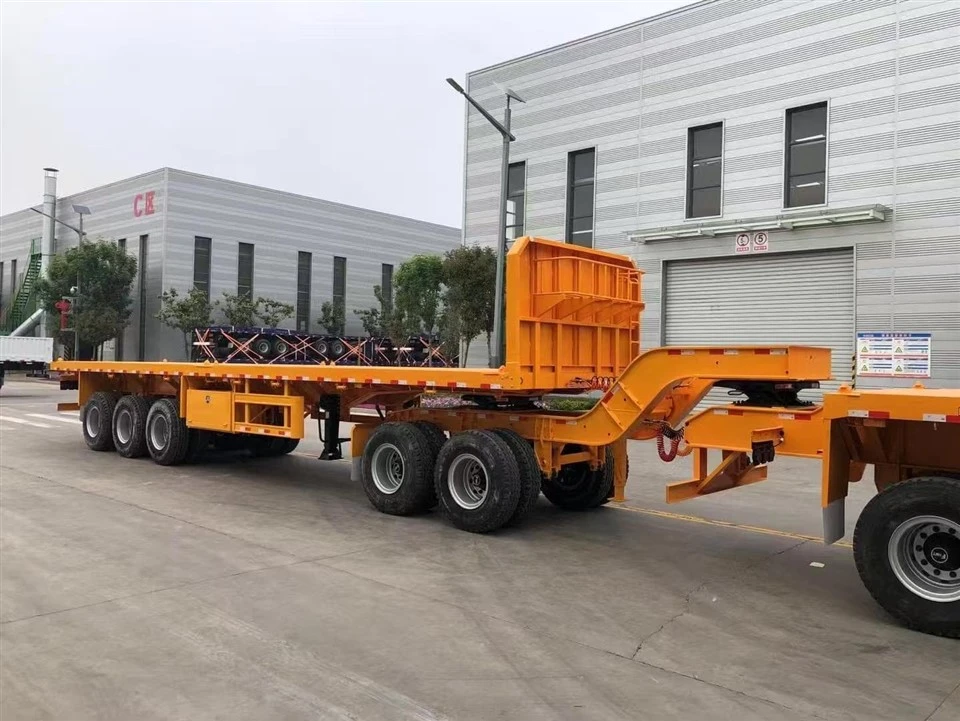

Dual-Articulated Flatbed Trailer
If you move oversized, long loads like steel coils, lumber, or construction materials, you know the struggle: rigid trailers can’t handle tight turns, and weak frames flex under heavy weight. You waste time maneuvering, risk damaging cargo, and deal with constant maintenance headaches.
That’s why our dual-articulated flatbed trailer is built for operators who need flexibility, strength, and reliability for long-haul heavy transport.
Product Introduction
The Dual-Articulated Flatbed Trailer is built for transporting long, heavy, and oversized cargo such as steel beams, lumber, pipes, and construction materials.
Key Specifications
| Item | Details |
|---|---|
| Axle Configuration | 3+3 axle heavy-duty design (customizable) |
| Platform Length | A 40 ft.+ extended flatbed for oversized cargo |
| Articulation System | Dual-joint steering for ultra-tight turning |
| Frame Material | High-strength steel (700 MPa yield strength) |
| Tire Size | 12R22.5 heavy-duty truck tires |
| Front Bulkhead | Reinforced steel bulkhead for cargo protection |
Core Performance & Technical Highlights
| Parameter | Specification | Functional Advantage |
|---|---|---|
| Payload capacity | 80-400 tons (modular expansion to 1,000 tons) | Transports OOG cargo like wind turbine blades |
| Steering system | Electro-hydraulic control + multi-axle coordination | Navigates S-curves and complex routes |
| Terrain adaptability | 25% max grade + cross-axle stability | Mines/construction site mobility |
| Safety control | Real-time CG monitoring + auto ballast adjustment | Anti-rollover (tilt alert ≥8°) |
· Lift axles: Retractable when empty to reduce tire wear
· Modular extensions: Platform lengthening with 3/6/9m insert
· Dual hydraulic articulation system with two pivot joints integrated into the chassis frame.
· Multi-axle synchronized steering system across axle group assemblies.
· Centralized load distribution across an extended flatbed platform structure.
· High-strength steel frame construction with 700 MPa yield strength material.
· Reinforced welded chassis assembly for heavy load operation.
· 40 ft+ extendable flatbed platform with modular extension configuration.
· Flatbed deck structure designed for long-length and oversized cargo.
· Front steel bulkhead integrated into platform front structural section.
· Hydraulic steering linkage assembly integrated with axle alignment system.
· Articulation system configured for curved and multi-directional route operation.
Comparison vs. Rigid Flatbed Trailers
| Capability | Dual-Articulated Trailer | Rigid Trailer |
|---|---|---|
| Min. turning radius | 16m (for 40-ft trailer) | 22m |
| Ground clearance | 300mm axle tolerance | ≤150mm |
| Max cargo length | Theoretically unlimited | ≤30m |
| Complex route cost | Eliminates escort vehicles | Requires traffic control |
Custom Manufacturing Options
We provide tailored engineering solutions for different markets and transport needs:
- Axle configuration customization
- Platform length adjustment
- Suspension system selection (air/mechanical)
- Load capacity optimization
- Regional compliance adaptation
Typical Applications
| Industry | Cargo | Case Requirement |
|---|---|---|
| Wind energy | Turbine blades (70-90m length) | Mountainous terrain with 30% grades |
| Power projects | Transformers (≥300 tons) | Rural roads with 4.5m width |
| Mining | Excavator chassis | ≥15km/h on unpaved surfaces |
| Aerospace/defense | Rocket sections | Vibration control ≤0.5g |
Scenario advantage: For blade transport in mountains, dual articulation reduces blade-tip swing by 60%, preventing collisions.
Quality Control System
The manufacturing process is controlled through structural and load validation stages:
- Structural inspection before assembly
- Welding integrity verification
- Load-bearing performance testing
- Final pre-delivery inspection (PDI)
FAQ
Q: What types of cargo is this trailer best suited for?
A: Suitable for long, heavy, and oversized cargo, including steel coils, I-beams, lumber, pipes, and construction materials.
Q: How does the dual articulation system hold up over time?
A: Articulation joints use heavy-duty wear-resistant components designed for 10+ years of operation. Spare parts supply and maintenance documentation are provided for lifecycle service support.
Q: Can I customize the trailer for my local road regulations?
A: Axle spacing, overall length, load capacity, and lighting configuration can be adjusted according to local road and weight regulation requirements.
Q: What's your MOQ and production lead time?
A: The MOQ is 1 unit for a trial order. Production lead time is 7–15 working days after deposit and order confirmation. Bulk order conditions apply for larger volumes.
Q: Do you handle shipping and export documentation?
A: Export documentation includes commercial invoice, packing list, bill of lading, certificate of origin, and inspection certificates. Freight coordination is provided for shipment execution.
Q: What warranty do you offer?
A: 6-month warranty on frame and core structural components with technical support covering global operation requirements.
